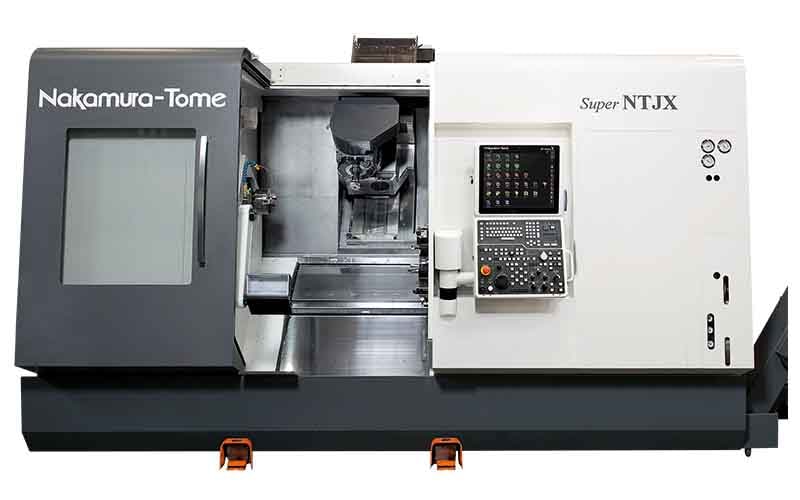

NTJX
Brand：Nakamura Tome
Photo credit: Nakamura Tome
Rating
(0)
0
Write a review
Introduction
- 40tools Number of stock tool (op.80,120tools)
- 140mm / 70mm Y-axis on upper and lower slides!
- 6000min-1 Milling speed (Tool spindle)
- 7.5/3.7kW Built-in tool spindle motor
- Up to 22kW cutting power available for turning shaft-work with synchronized spindles.(Left spindle motor 15/11kW、Right spindle motor 11/7.5kW)
- 5.5/3.7kW Lower turrets Driven-tool motor
- 190degree B-axis positioning range (±95degree)
Specifications
Turning Diameter (inch)
9.65
Turning Length (inch)
42.91
Chuck Diameter (inch)
6
Bar Capacity
2
Spindle Nose
A2-5
Spinlde Bore (inch)
2.48
Top RPM
6000
Spindle Horse Power
20
X Travel (inch)
17.913
Y Travel (inch)
5.511
Z Travel (inch)
42.913
X axis Rapid Rate (ipm)
629
Y axis Rapid Rate (ipm)
629
Z axis Rapid Rate (ipm)
1572
C Travel (inch)
360
C axis RPM
600
Number of Turning Tools
40
Shank od. (inch)
1
Shank Dia. (inch)
1
Number of Rotary Tools
12
Rotary HP
10
Rotary RPM
8000
×
