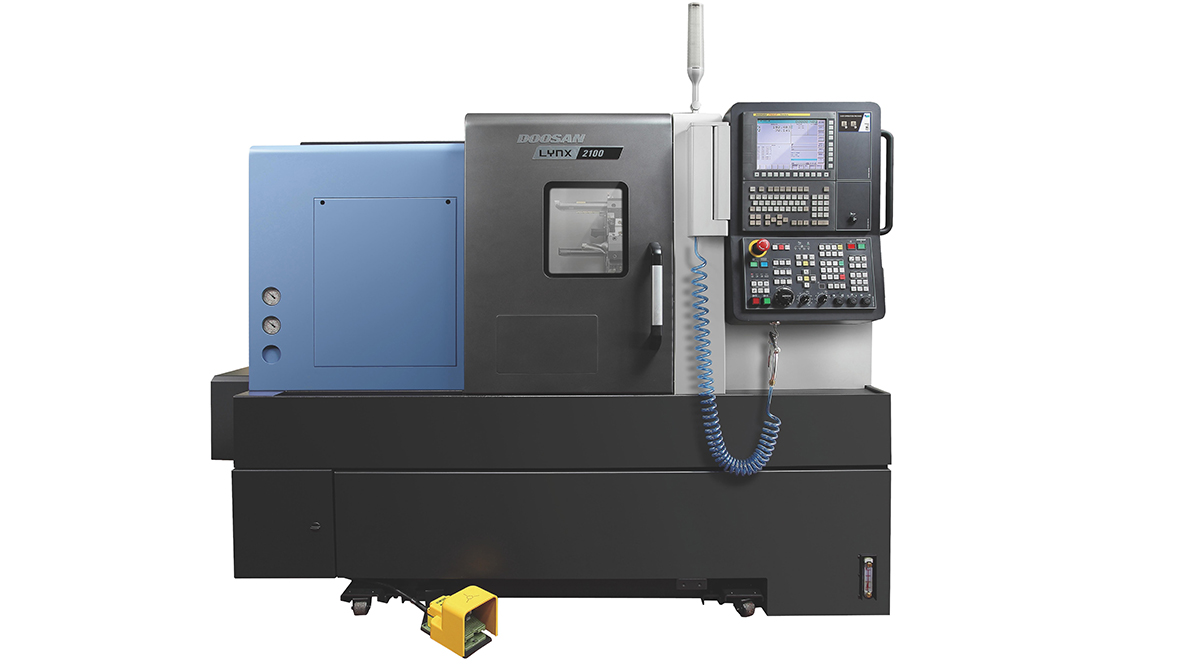

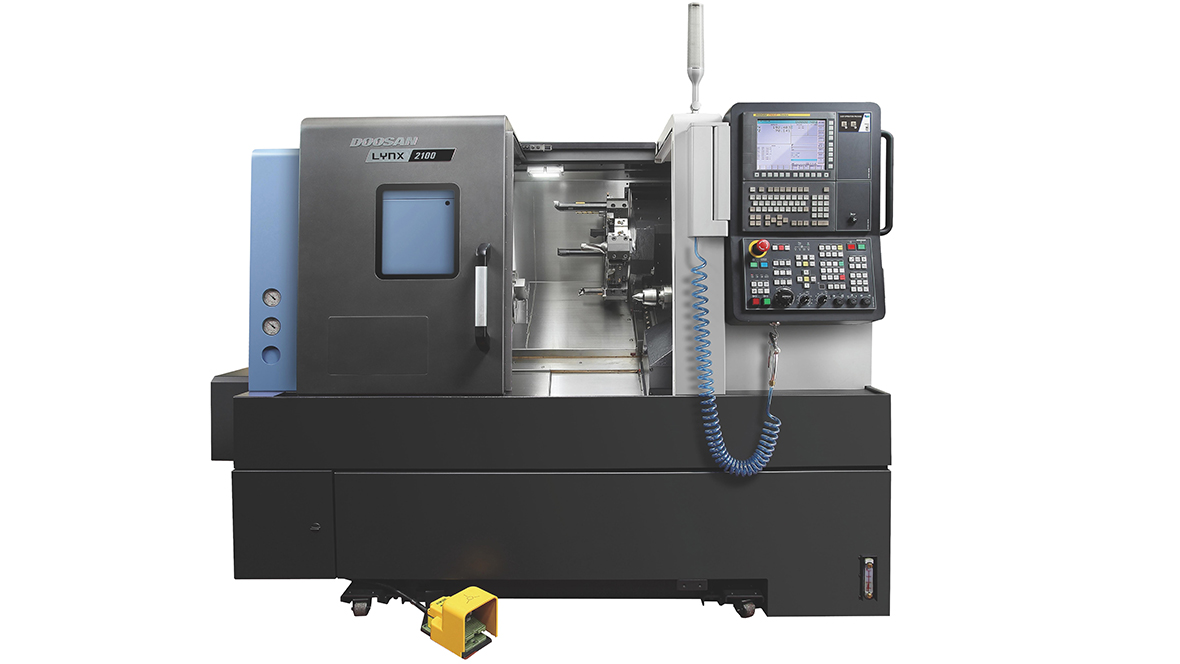

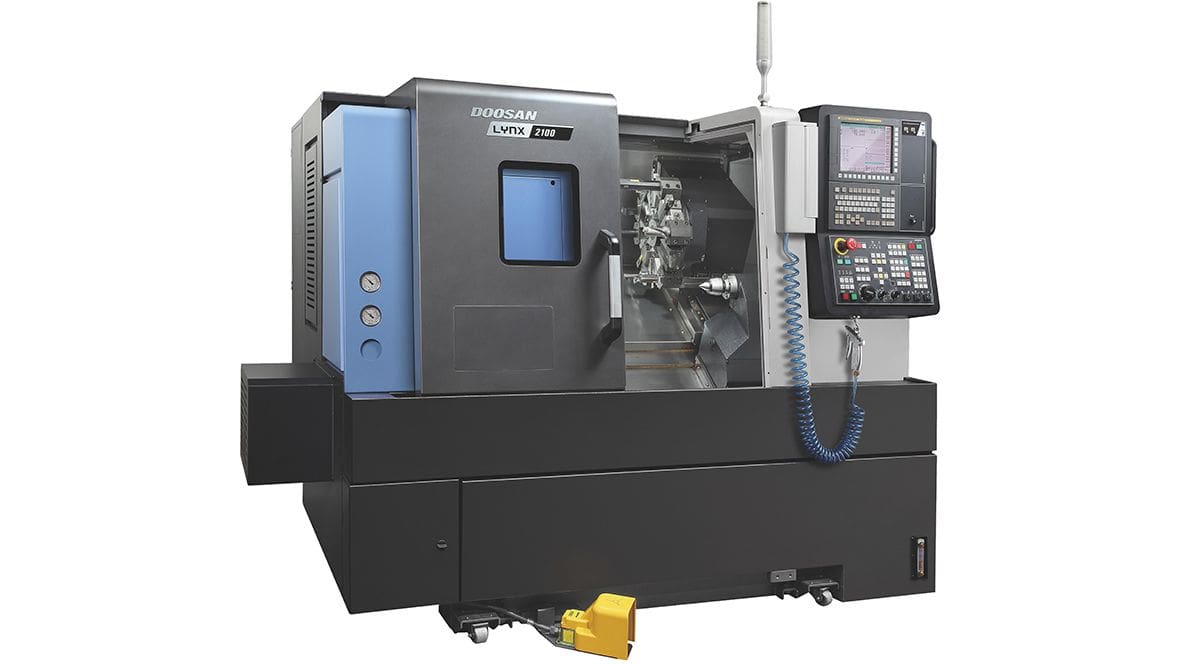

LYNX 2100 Series
Brand:Doosan Machine Tools
Photo credit: Doosan Machine Tools
Photo credit: Doosan Machine Tools
Photo credit: Doosan Machine Tools
Photo credit: Doosan Machine Tools
Photo credit: Doosan Machine Tools
Rating (2)
4.5
Write a review
MitchG.
Russell  H
Features
01Superior machining performance
Equipped with a 15kW high-power motor

Max. Turning Diameter : 350mm / Max. Turning Length : 550mm

Excellent cutting capability
02High reliability
Low vibration/noise spindle

Servo-driven turret

Full slideway cover to Prevent leakage and chip disposal
03Improved User Convenience
EOP

Grease type lubrication

Rear side double-purpose chip conveyor
Introduction

Doosan Group is a South Korean conglomerate company. In 2009, the company was placed 471st in the Fortune Global 500. The Doosan Group was founded in 1896. The company began as the Park Seung Jik Store in 1896 in Baeogai. Since then, Doosan has developed into a multinational conglomerate, with particular emphasis on consumer goods, manufacturing and the trading and construction sectors.



Since the development of NC lathe in 1980, Doosan Machine Tools has become one of the leading companies in the global machine tool industry by concentrating on expanding export market, continuously developing new products, establishing a global network, and building a strong brand. By providing precision machining equipment in high value industries such as automobile, aerospace, and IT, it helped lay the foundation to strengthen manufacturing competitiveness of global industries.



Since the development of NC lathe in 1980, Doosan Machine Tools has become one of the leading companies in the global machine tool industry by concentrating on expanding export market, continuously developing new products, establishing a global network, and building a strong brand. By providing precision machining equipment in high value industries such as automobile, aerospace, and IT, it helped lay the foundation to strengthen manufacturing competitiveness of global industries.



Specifications
Turning Diameter (inch)
13.8
Turning Length (inch)
11.811
Chuck Diameter (inch)
6
Bar Capacity
2
Top RPM
6000
Spindle Horse Power
20
X Travel (inch)
8.1
Z Travel (inch)
340
X axis Rapid Rate (ipm)
472
Z axis Rapid Rate (ipm)
551
Number of Turning Tools
10
Number of Rotary Tools
12
×
