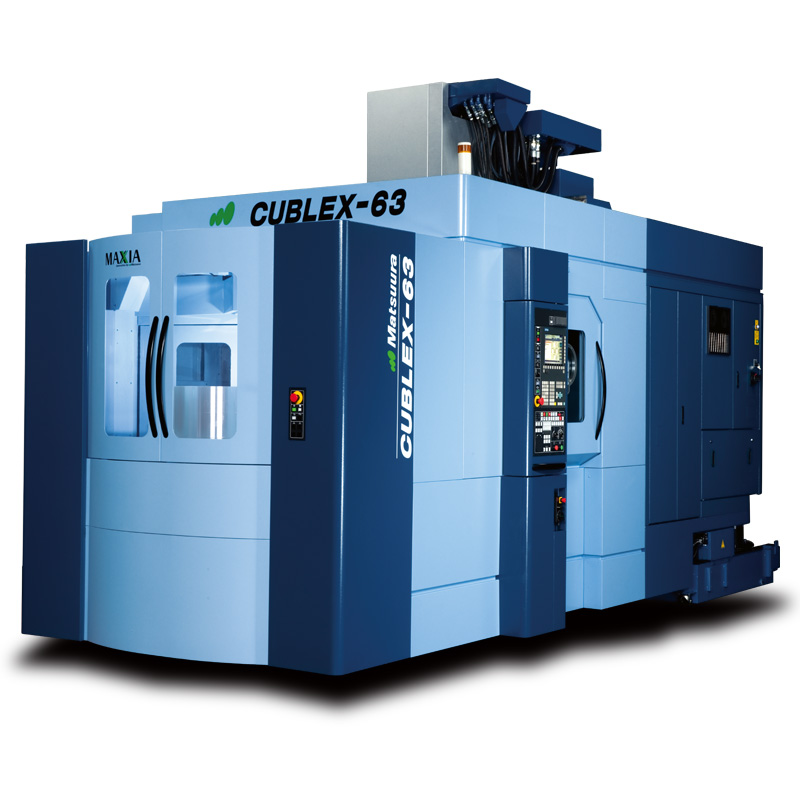

CUBLEX-63
Brand：Matsuura
Photo credit: Matsuura
Rating
(0)
0
Write a review
Features
01Milling + turning + grinding* incorporated in one machine.
02Extended unmanned running with single chucking operation.
03Automation of High-accuracy Workpiece Measurement, Wheel Dressing and Grinding.
Introduction
Matsuura Machinery began as a manufacturer and distributor of lathes in 1935. Production of milling machines began in 1957, and the company went public in 1960. Production of automatic-controlled milling machines began in 1961 and numerically-controlled milling machines from 1964. Production of automatically-controlled drilling machines began in 1972, and vertical machining centers from 1974.
Growing our reputation across the World, Matsuura will continue to be dedicated to:
ingenious manufacturing, innovation, commitment to excellence and relationship-based business development, and embracing the future.
Specifications
Spindle Taper
HSK63
Spindle RPM
12000
Horse Power (HP)
22
Spindle Direction
Combination
Tool Magazine
320
Table Length (inch)
19.7
Table Width (inch)
19.7
Table Loading Capacity (lbs)
770
X Travel (inch)
29.9
Y Travel (inch)
33.3
Z Travel (inch)
26
X Rapid Rate (ipm)
2362
Y Rapid Rate (ipm)
2362
Z Rapid Rate (ipm)
2362
Multi-Axis
5
×
