Features
01Easy-to use MAZATROL SmoothG control for advanced high-speed, high-accuracy performance
021,582 ipm rapid traverse rate
03Maximum table load of 3,300 lbs.
Introduction

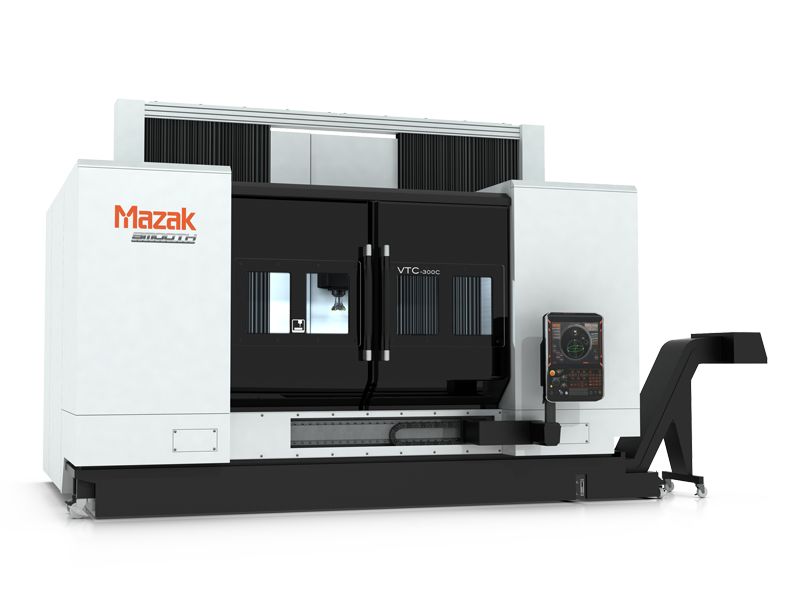

The VTC-300C Vertical Machining Center features a powerful 40-taper spindle, full traveling column design and fixed table for machining extremely long and heavy workpieces. With a table center partition, the machine work envelope can be transformed into two separate work areas that allow the machine to be in cycle in one work area while a part is being set up in the other. The machine also delivers fast rapid traverse rates to reduce non-cut times.

Yamazaki Mazak is one of the biggest machine tool builders around the world, Yamazaki Mazak was established in 1919 and began the establishment of overseas facilities in 1974. Yamazaki Machinery founded by Sadakichi Yamazaki (Nagoya) which began the manufacturing of straw mat weaving machinery. Mazak has wild product line including Multi-Tasking, HYBRID Multi-Tasking, 5-Axis, Turning, Vertical Machining, Horizontal processing, and Palletech. Machines can be used on different industries like Aerospace, Auto/Truck, Con/Agra, Consumer Electronics, Energy, Job Shops, Mass Production, and Medical. Mazak offer the most innovative manufacturing technology and advanced support resources in the medical industry.



MAZATROL makes it possible to run our machines using conversational or EIA/ISO programming. Available on all of our CNC systems, this proprietary programming language brings versatility and ease of use to your production floor. Mazak has been successfully manufacturing some of the world’s most advanced HYBRID Multi-Tasking, Multi-Tasking, 5-axis, turning and milling machines since 1974 in its Florence, Kentucky manufacturing facility. That facility was reimagined to incorporate the company’s forward-thinking Mazak iSMART Factory™ concept.

Specifications
Spindle Taper
#40
Spindle RPM
10000
Horse Power (HP)
20
Spindle Direction
Vertical
Tool Magazine
24
Table Length (inch)
79
Table Width (inch)
30
Table Loading Capacity (lbs)
3300
X Travel (inch)
65
Y Travel (inch)
30
Z Travel (inch)
26
X Rapid Rate (ipm)
1181
Y Rapid Rate (ipm)
1181
Z Rapid Rate (ipm)
787
Multi-Axis
3
×
